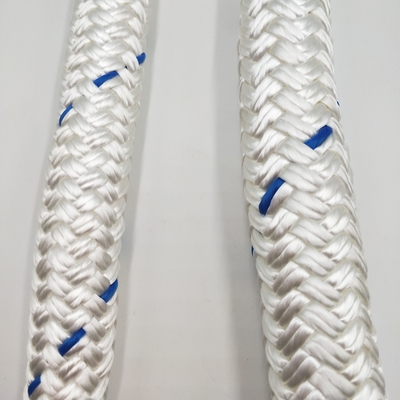

Double Braided Nylon Mooring Rope for Marine Towing and Docking

Double braided nylon mooring rope is a high-performance rope commonly used in marine, dock, and towing applications due to its strength, elasticity, and durability. Here’s a detailed breakdown of its features and uses:

Key Features:

1. Material: Made from nylon, which provides excellent:

   • Strength-to-weight ratio (high tensile strength for its size).

   • Elasticity (can stretch up to 20-30%, absorbing shock loads effectively).

   • Resistance to abrasion, UV rays, and chemicals (treated for marine environments).

   • Floatability (some variants float, though nylon typically absorbs water).

2. Construction:

   • Double Braided Structure: Consists of a braided core inside a braided cover, offering better strength and flexibility than a single braid.

   • Smooth Handling: The outer braid protects the inner core, reducing wear and kinking.

   • Balanced Design: Resists hockling (twisting) and provides uniform load distribution.

3. Advantages Over Other Ropes:

   • • Higher strength than three-strand nylon ropes of the same diameter.

     • More flexible and easier to handle than twisted ropes.

     • Better resistance to wear due to the protective outer braid.

   Common Uses:

   • Mooring lines for boats, ships, and docks (absorbs shock from waves and wind).

   • Towing & anchor lines (handles dynamic loads well).

   • Dock lines & marine applications (durable in saltwater conditions).

   • Industrial & utility applications where strong, abrasion-resistant rope is needed.

Sizing & Strength:

• Diameter Range: Typically from 3/8" (10mm) to 2" (50mm) or more.

• Breaking Strength: Varies by diameter (e.g., a 1/2" nylon double braid may have a breaking strength of ~10,000 lbs).

• Working Load: Usually 15-20% of breaking strength for safety.

Maintenance Tips:

• Rinse with fresh water after saltwater use to prolong lifespan.

• Inspect regularly for cuts, abrasions, or UV damage.

• Store dry and coiled to prevent kinks and mildew.

Alternatives:

• Polyester Double Braid: Less stretch, better for static loads.

• Three-Strand Nylon: Cheaper but less flexible.

• Spectra: Higher strength, no stretch, but more expensive.
